NEW Cygnus Underwater

Diver-Held Thickness Gauge

  • Designed for divers needing to take reliable thickness measurements of underwater structures, the Cygnus Underwater diver-held gauge provides quick and accurate metal thickness measurements through coatings or even heavy corrosion.
  • Available for PRE-ORDER NOW

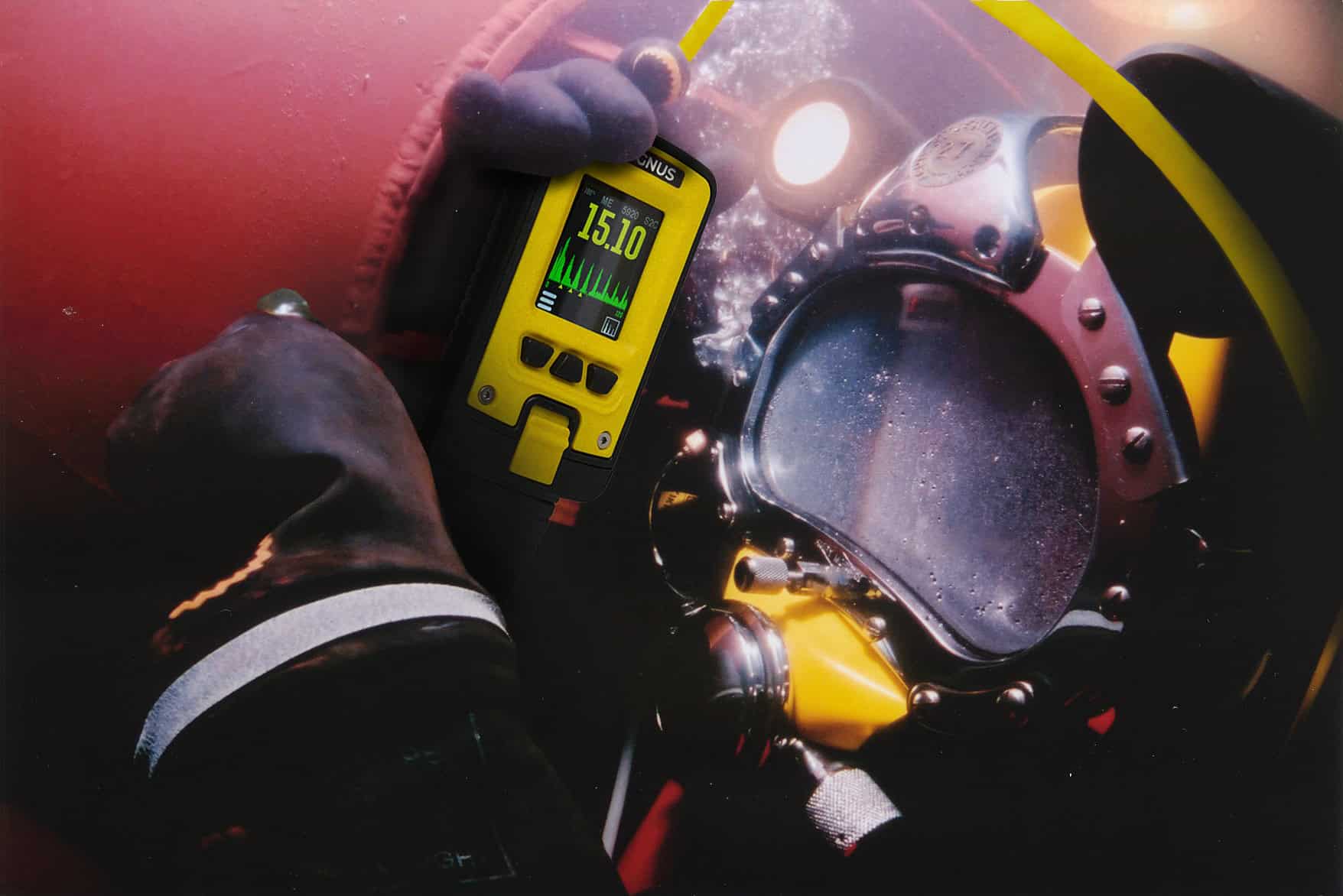

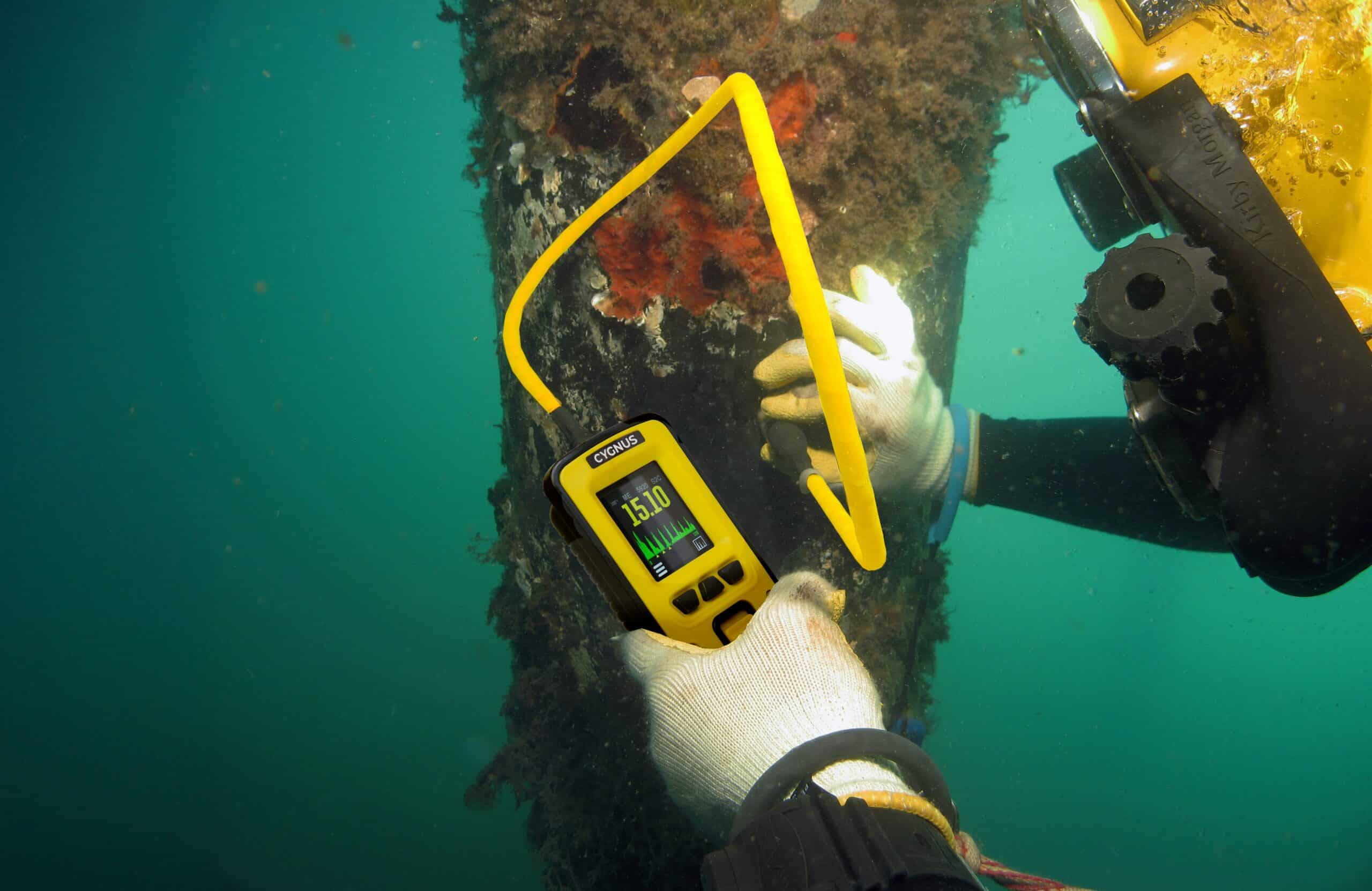

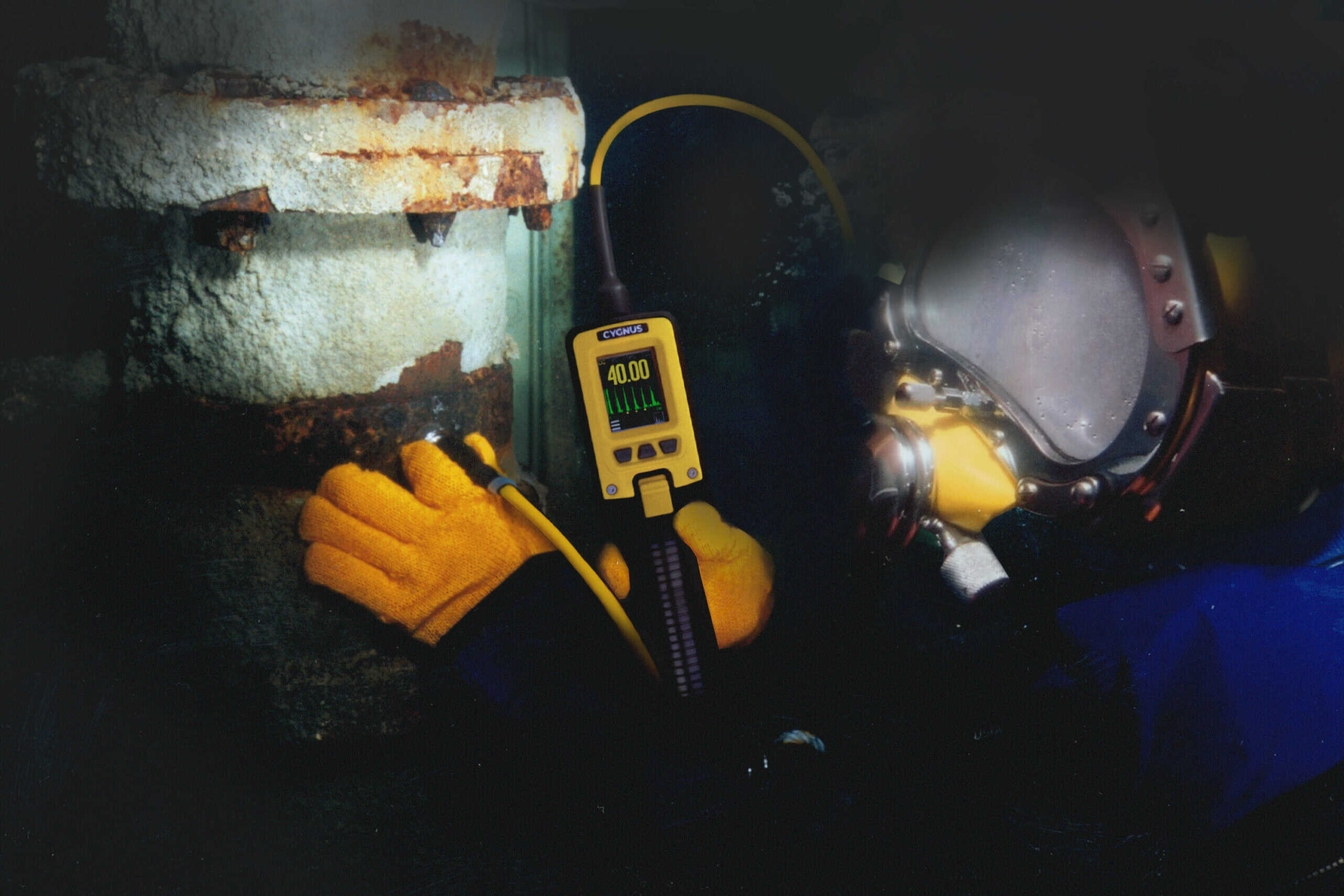

Specifically designed for divers undertaking ultrasonic thickness measurement (UTM) of underwater structures. The Cygnus Underwater diver held gauge has been built to withstand harsh subsea environments while providing quick and accurate metal thickness measurements through coatings or heavy corrosion. This diver-held thickness gauge is simple to operate using 3 function keys, an intuitive menu and a large LCD display – highly visible, even in low-visibility waters.

Key Features:

  • 3 measuring modes for levels of corrosion, various materials and through-coat measurements
  • Depth sensor – live depth display providing the diver with an accurate depth indicator
  • Live A-Scans aid visual measurement verification
  • Extremely Simple-to-Use with 3 function keys and up to 4 screens
  • Comprehensive data-logging: linear and grid
  • Deep Coat function ignores thick coatings
  • RTC (Real Time Clock) for tagging date/time on measurement points
  • Auto-set Gain to optimise the probe’s gain settings for optimal performance
  • Multiple Echo Mode to verify accurate through-coat measurements as specified by Class Societies
  • Measurement Stability Indicator (MSI) verifies stable and therefore reliable measurements
  • Available in STD, PLUS and PRO variants with upgradeable options, e.g. Topside Repeating and Data Logging (download the Cygnus Underwater Variants Comparison Guide).

Whether you need a reliable Underwater Thickness Meter or an efficient Underwater Thickness Gauge, our Cygnus instruments offer top-notch performance and accuracy for your underwater measurement needs.

Measuring ModesSingle Echo with Twin Crystal Probes
Echo-Echo with Twin Crystal Probes
Multiple Echo with Singly Crystal Probes
MaterialsSound velocity from 2000 m/s to 9000 m/s [0.0787 in/us to 0.3543 in/us]
Accuracy±0.1 mm (±0.004”) or 0.1% of thickness measurement whichever is the greatest
Resolution0.1 mm, 0.05 mm or 0.01 mm depending on probe type
Probe OptionsSingle crystal and twin crystal probes
Measurement Range in Steel1 mm to 250 mm (0.040 in. – 10 in.) depending on selected probe and configuration,
material and temperature
ConnectorSubConn MC
Power SupplyNi-MH battery pack 1.8 Ah (min)
Power Rating1.5W
Probe SocketsLemo
Battery Life8 hours minimum continuous measurement
Display2.4” VGA, sunlight readable colour display
Size80 x 305 x 65 mm (W x L x D)
Weight1 kg with battery
Operating Temp.-10°C to +50°C (14°F to 122°F)
Storage Temp.-20°C to +60°C (-4°F to 140°F)
Data Logging5,000 measurements and A-scans per record
Computer SoftwareCygLink allows remote logging and viewing of A-scan graphs. Survey and report
generation to PDF file. Graphic analysis of data and statistical calculations.
Data output via RS-485 serial connection to transfer data to a Windows® computer with CygLink.
Depth SenorRange 0 – 300 m (30Bar)
Environmental ProtectionDepth rated for 300 m continuous immersion in sea water
MIL STD 810G Method 501.6 (High temp. +55°C)
MIL STD 810G Method 502.6 (Low temp. -20°C)
Shock & ImpactMIL STD 810G Method 514.7 (Vibration)
MIL STD 810G Method 516.7 (Shock 20g)
MIL STD 810G Method 516.7 (Transit Drop 1.22m)
StandardsDesigned for BS EN 15317
RoHS Compliant
Warranty3 years on gauge and 6 months on probe

Cygnus Underwater Variants

Download the Cygnus Underwater Variants Comparison Guide.

STD Variant
Programmed with:
– Multiple-Echo Measurements (ME)
– Deep Coat
– Depth Display
– Measurement Units, Resolution, Velocity of Sound
– Material List
– Auto-Set Gain.
PLUS Variant
Programmed with:
– Single Echo Measurements (SE)
– Echo-Echo Measurements (EE)
– Multiple-Echo Measurements (ME)
– Deep Coat
– Depth Display
– A-Scan Display
– Measurement Units, Resolution, Velocity of Sound
– Material List
– Auto Probe Detection
– Auto-Set Gain.
PRO Variant
Programmed with:
– Single Echo Measurements (SE)
– Echo-Echo Measurements (EE)
– Multiple-Echo Measurements (ME)
– Deep Coat
– Depth Display
– Data Logging with Auto-Log
– A-Scan Display
– Measurement Units, Resolution, Velocity of Sound
– Material List
– Auto Probe Detection
– Auto-Set Gain.

Comprehensive Data Logging (Available with PRO Variant)

  • Record types: Linear and Grid 2D
    datalog 01 40mm DC
  • Log measurements by pressing the middle key or using Auto-Log feature
  • Allows a maximum of 5,000 measurement points per record
  • 16 grid patterns available
  • Saves measurements with A-scans and depth as records on internal memory.

Topside Repeating via CygLink (Available with PRO Variant)

CygLink is a Windows® based application for computer use to display continuous A-Scan output and measurement data. CygLink has the facility to log both data formats into a Survey file for report presentation, which can be emailed, exported as a PDF, or printed.
