Non Destructive Ultrasonic Equipment for Hazardous Environments

As well as being intrinsically safe, the Cygnus 1 UT equipment is extremely rugged and well suited for use in harsh environments.  Examples of such areas include:

  • Chemical plants
  • Dry, dusty environments where ignition could occur
  • Fuel depots
  • Grain processing plants
  • Inside storage tanks on land or at sea
  • Oil and gas production facilities
  • Mining
  • Explosive atmospheres.

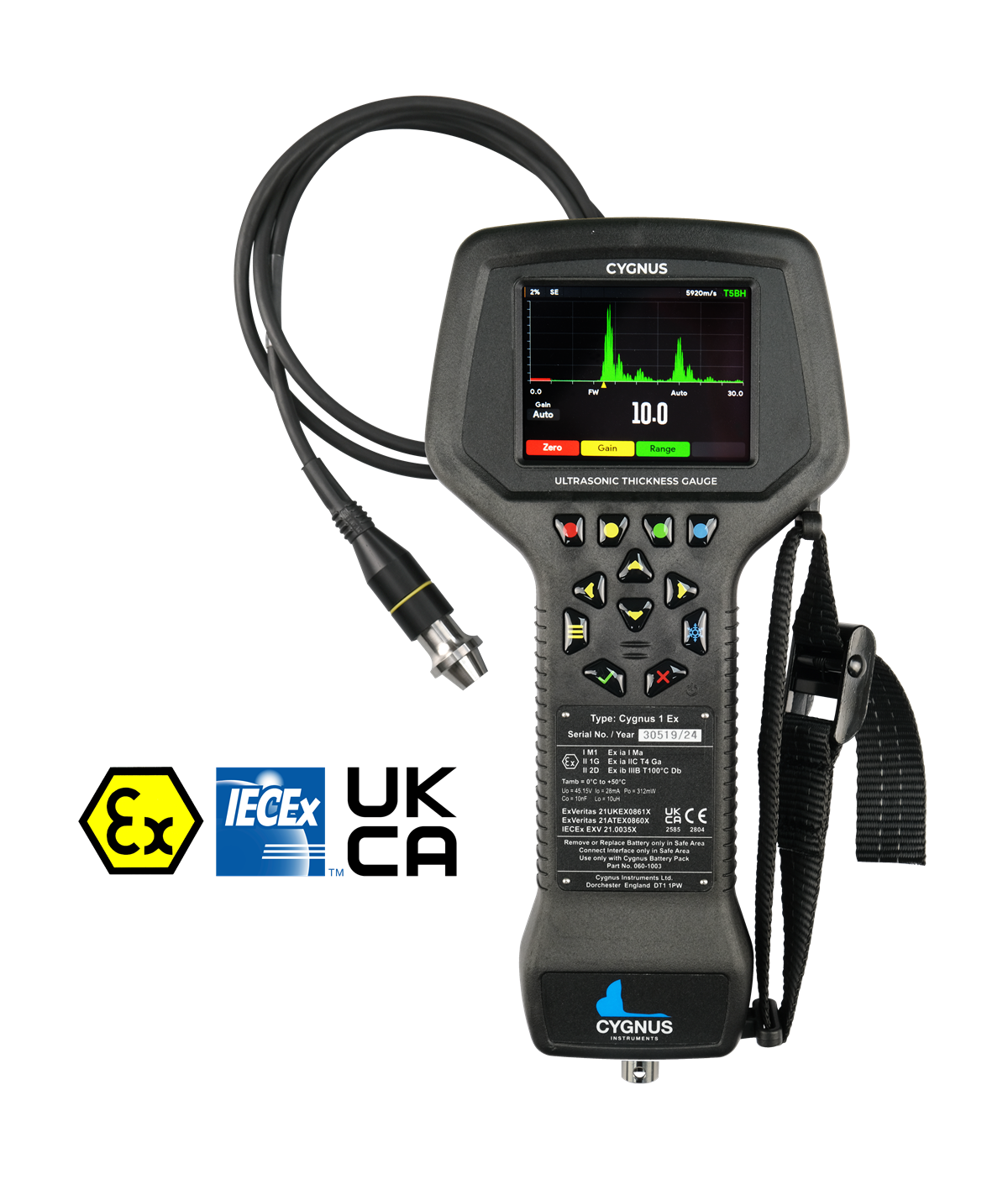

Cygnus has developed a Multiple Echo NDT ultrasonic thickness gauge that is certified for use in these hazardous environments. The Cygnus 1 Intrinsically Safe thickness gauge is certified to:

ATEX
II 1 G Ex ia IIC T6 Ga (Tamb = -20°C to 40°C)
I M 1 Ex ia I Ma (Tamb = 0°C to 45°C)
Certificate No. BAS00ATEX1108

UKEX
II 1 G Ex ia IIC T6 Ga (Tamb = -20°C to 40°C)
I M 1 Ex ia I Ma (Tamb = 0°C to 45°C)
Certificate No. BAS21UKEX0661

IECEx
Ex ia IIC T6 Ga (Tamb = -20°C to 40°C)
Ex ia I Ma (Tamb = 0°C to 45°C)
Certificate No. IECEx BAS 19.0021

CSA
Class 1 Group A, B, C, D Division 1.
